Rectangular Hollow Section
Rectangular Hollow Sections are priced per metre.
Code | Measurements |
1RHSA | 125mm x 75mm x 3mm |
1RHSB | 100mm x 50mm x 3mm |
1RHSC | 100mm x 100mm x 3mm |
1RHSCD | 150mm x 50mm x 3mm |
1RHSD | 150mm x 100mm x 4mm |
1RHSE | 200mm x 100mm x 4mm |
JOINERS | Suits above sizes |
BENDS | 45 and 90 Degrees to suit above sizes |
NOTE: All RHS can be made in any length up to 6m.
1RHSA, 1RHSC & 1RHSCD are SUPERGAL HOT DIP GALVANISED to AS/NZS 4792.
1RHSD and 1RHSE is HOT DIP GALVANISED to AS/NZS 4680.
Rectangular Hollow Sections can be cut to size as needed, but will be charged at the full per-metre rate (e.g. 3.6m ordered would be charged as 4m).
Joiners & Bends are available for purchase with RHS only. (ie. Cannot be purchased on their own.)
All bends are made to order in 45o and 90o only.

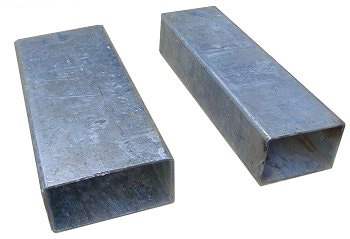

RHS - various sizes |

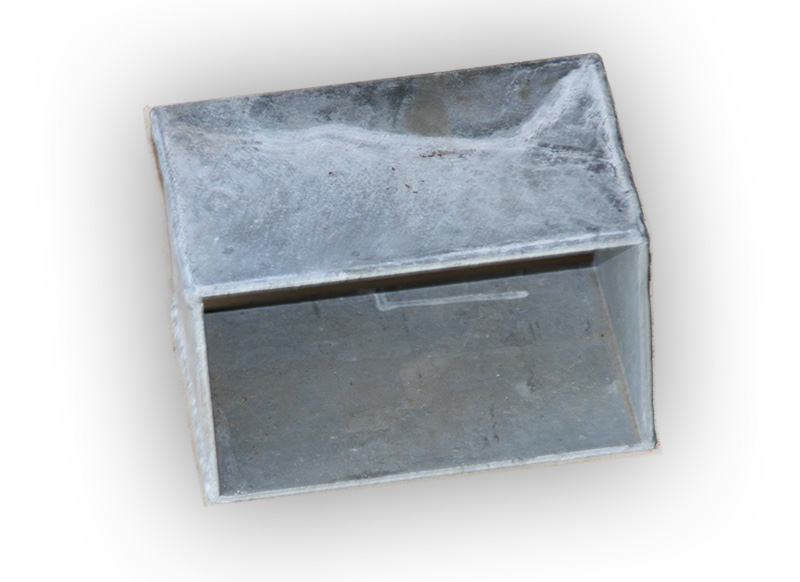

Joiner - various sizes |

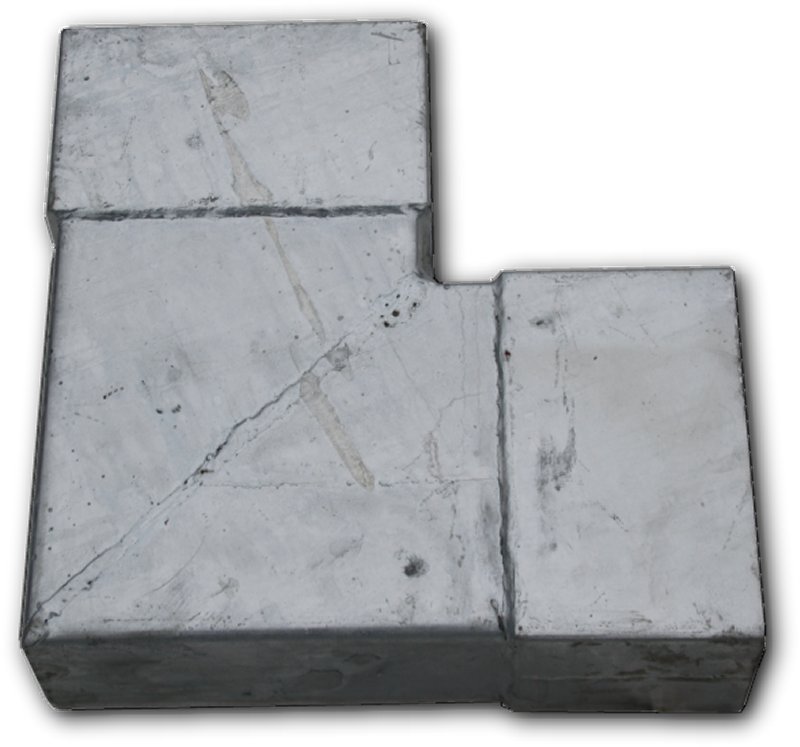

RHS - 90º Bend |

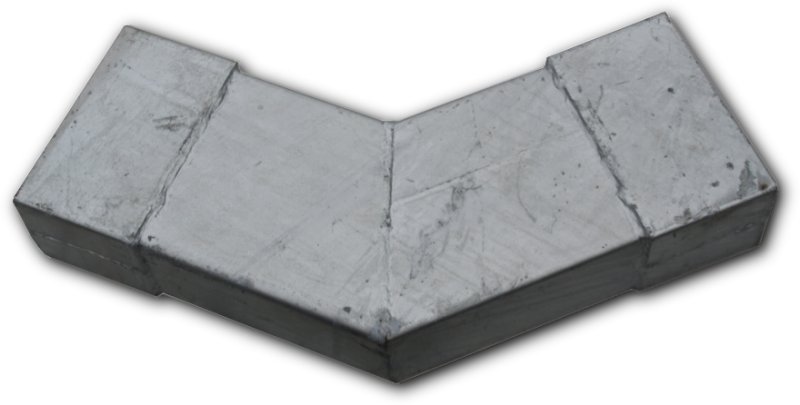

RHS - 45º Bend |
